LN-F001 SDI to AV+SDI Converter
Model: LN-F001
Input: 1× BNC (3G-SDI/HD-SDI/SD-SDI)
Outputs: 1× BNC (SDI out), 3× RCA (CVBS, L, R)
Video Output: PAL/NTSC
Max Distance: 300m
Professional SDI to composite video and audio converter with SDI loop-through output.
1.0 Key Technical Features
| Section | Key Attributes |
| Signal Conversion | SDI to composite video (CVBS) + stereo audio |
| Signal Distribution | SDI loop-through output for daisy-chaining |
| Transmission | Up to 300m (SD-SDI), 200m (HD-SDI), 100m (3G-SDI) |
| Compatibility | Supports all SDI standards; PAL/NTSC output |
| Operation | Manual PAL/NTSC selection button |
| Build | Metal housing, ESD protection, compact size |
2.0 Technical Documentation
2.1 Overview
The LN-F001 converts digital SDI signals to analog composite video and stereo audio, allowing modern video sources to connect to legacy displays. An SDI loop-through output allows simultaneous connection to SDI monitors or recorders.
2.2 Signal Specifications
- Input: 1× BNC (3G-SDI/HD-SDI/SD-SDI)
- Outputs: 1× BNC (SDI loop), 3× RCA (CVBS, L, R)
- Max Bitrate: 2.97Gbps
- Resolutions: SD, HD, 3G-SDI
- Output Format: PAL or NTSC (user-selectable)
- Audio: 2CH analog stereo
2.3 Physical Specifications
- Dimensions: 92mm × 67mm × 25mm
- Weight: 180g
- Power: DC 5V
- Consumption: 5W max
- Operating Temp: 0°C to 40°C
2.4 Included Accessories
- 1× LN-F001 Converter
- 1× 5V DC Power Adapter
- 1× User Manual
3.0 Comprehensive Specification Table
| Category | Parameter | Specification |
| General | Model | LN-F001 |
| | Input | 1× BNC |
| | Outputs | 1× BNC, 3× RCA |
| Signal | Max Bitrate | 2.97Gbps |
| | Resolutions | SD, HD, 3G-SDI |
| | Output Format | PAL / NTSC |
| | Audio | 2CH analog |
| | Distance | 300m (SD), 200m (HD), 100m (3G) |
| Electrical | Power | DC 5V |
| | Consumption | 5W max |
| | ESD Protection | ±8kV (air), ±4kV (contact) |
| Physical | Dimensions | 92×67×25 mm |
| | Weight | 180g |
| | Housing | Metal |
| Environmental | Operating Temp | 0°C to 40°C |
| | Storage Temp | -20°C to 60°C |
| | Humidity | 20%–90% RH |
4.0 Applications & Resources
4.1 Typical Applications

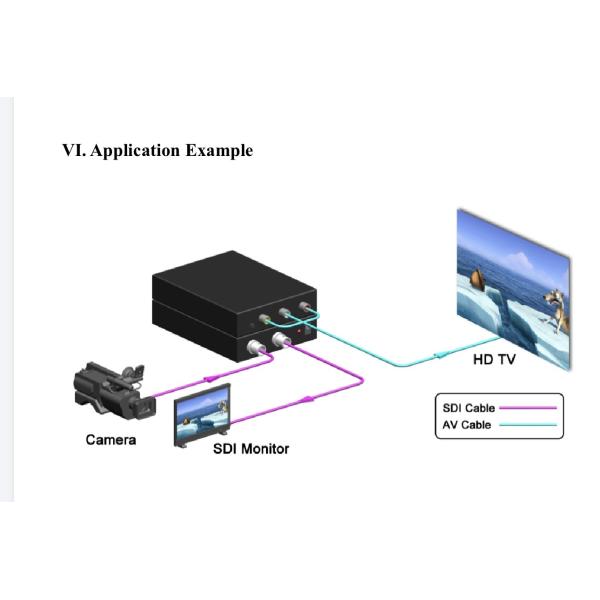

- Broadcast studio monitoring on legacy displays
- Live event video distribution to analog projectors
- Education facilities with mixed digital/analog systems
- Worship venues with older video systems
- Security DVR monitoring with analog inputs
- Retrofit installations with CRT displays
4.2 Package Contents
- LN-F001 SDI to AV+SDI Converter
- 5V DC Power Adapter
- User Manual
4.3 Technical Resources
- Datasheet (PDF)
- User Manual (PDF)
- Installation Guide
- Application Notes
For technical support, customization, or bulk orders, contact our professional AV team.
